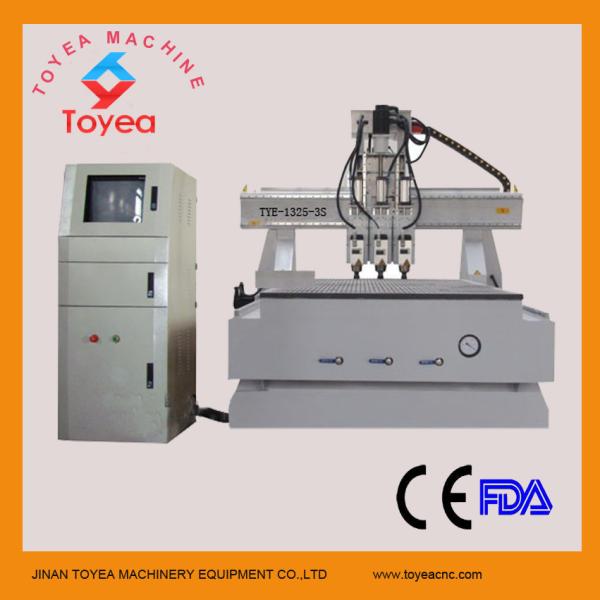

Three operations cnc wood door making machine 1300 x 2500mm TYE-1325-3s

JINAN TOYEA MACHINERY EQUIPMENT CO LTD
Contact Now
    Buy cheap Three operations cnc wood door making machine 1300 x 2500mm TYE-1325-3s from wholesalers

    Buy cheap Three operations cnc wood door making machine 1300 x 2500mm TYE-1325-3s from wholesalers
    • Buy cheap Three operations cnc wood door making machine 1300 x 2500mm TYE-1325-3s from wholesalers

    Three operations cnc wood door making machine 1300 x 2500mm TYE-1325-3s

    Ask Lasest Price
    Brand Name : TYE
    Model Number : TYE-1325-3S
    Certification :
    Price :
    Delivery Time : 10 working days
    Payment Terms : TT in advance
    Supply Ability : 300 pcs/month
    • Product Details
    • Company Profile

    Three operations cnc wood door making machine 1300 x 2500mm TYE-1325-3s

    Three operations cnc wood door making machine 1300 x 2500mm TYE-1325-3S
    Three operations cnc wood door making machinePerformance:

    Lathe bed is cast wholly and firmly and will not deform
    Y-axis adopts double motors to ensures stable operation
    Highly accurate Rack Rail travel method with high speed.
    Adopt imported square linear guideway, keeping machine accuracy and support large loading.
    Excellent Mechanical and electrical Design, famous brands electrical accessories are chosen, keep the failure rate to a minimum.
    With high power spindle motor, ensure that the machine can cut greatly.
    With breakpoints, power outages continued carving functions.

    Three operations cnc wood door making machineApplicable fields:

    Wood products, advertising signs, acrylic cutting and engraving, plastic molding and large engraving and cutting, etc. And can engrave copper, iron, aluminum, plastic, wood, or other non-metal materials, etc.
    Three operations cnc wood door making machine Parameters:
    Working area (X*Y*Z)1300x2500x 20 0mm
    Feeding height200mm or higher
    Max travel speed2 0000mm/min
    Max engraving speed10 00 0 mm/min
    Working accuracy0.01mm
    Repositioning accuracy0.03mm
    Spindle motor3KW air cooling x 3
    Spindle rotating0 -18000 rpm
    GuidewaySquare linear guideway
    Driving modeX,Y axis rack and opinion,Z axis ball screw
    Controlling systemNcstudio software (DSP,MACH 3 optional)
    Drawing softwareArtcam,artcut,type3,mastercam
    Support FormatG.code , mmg , plt , uoo,HPGL
    MotorStepper motor
    VoltageAC 22 0V/50HZ or 110V/60HZ
